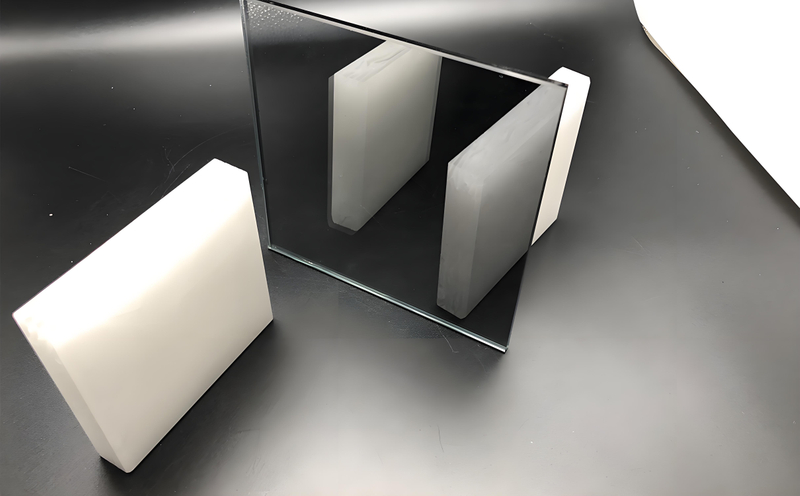

Unidirectional Perspective Glass

Overview

Unidirectional Perspective Glass, also known as one-way mirror or half-silvered glass, is a specialized optical glass that allows visibility in one direction while blocking it in the opposite direction, depending on the lighting conditions. The glass features a thin, semi-reflective coating—usually made of aluminum, nickel, or chromium—applied to one side, creating a balance between reflection and transmission. In well-lit environments, the coated side appears reflective to those on the brighter side, while observers on the darker side can see through the glass clearly.

This effect is achieved through the principle of light intensity difference: the side with more light reflects most of the radiation, while the darker side allows transmitted light to dominate. The glass can be produced in various thicknesses (3mm to 10mm) and sizes, with options for tinted coatings to enhance privacy or aesthetic appeal.

Features

Asymmetric Visibility: The core feature is its ability to enable one-way observation, making it ideal for security, surveillance, and privacy applications. The effect is reversible by adjusting the light balance between both sides.

High Optical Clarity: Despite the reflective coating, high-quality Unidirectional Perspective Glass maintains excellent light transmission (30-70% depending on coating density), ensuring clear visibility from the darker side without distortion.

Durable Coatings: Modern coatings are applied using vacuum deposition or sputtering techniques, providing resistance to scratches, moisture, and UV degradation. Some variants include anti-glare treatments for enhanced performance in bright environments.

Customizable Performance: Manufacturers can adjust the coating’s reflectivity and transmission ratio to meet specific needs, such as maximizing privacy with higher reflectivity or optimizing visibility with balanced light transmission.

Application

Security and Surveillance: Used in police interrogation rooms, bank teller booths, and observation decks, allowing authorities to monitor activities without being seen.

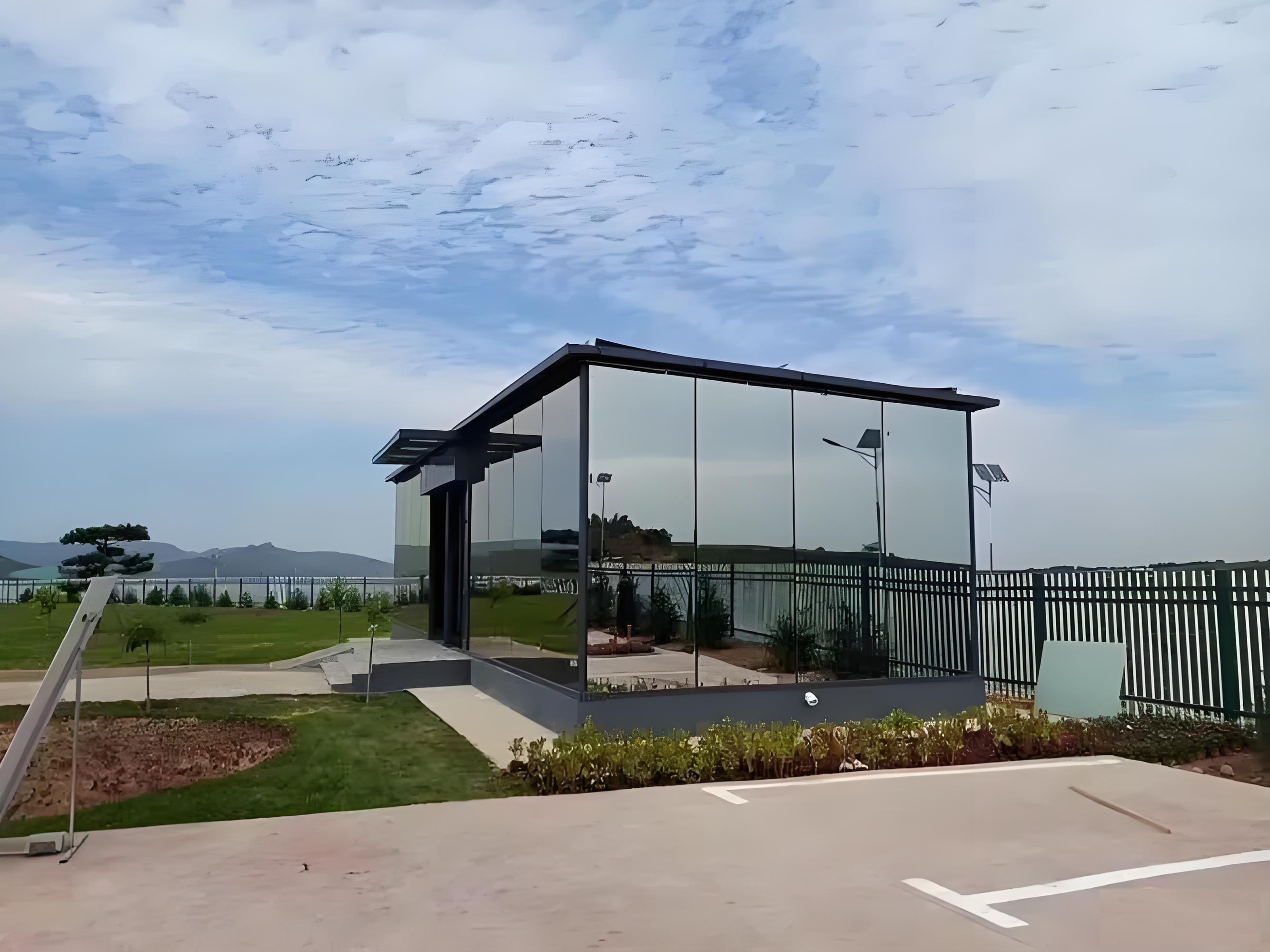

Commercial Spaces: Employed in retail store windows (to create display effects), office partitions (for private meetings with external visibility), and hotel rooms (for controlled views of public areas).

Transportation: Used in vehicle windows for VIP cars and armored vehicles, providing occupants with external visibility while preventing outsiders from seeing in.

Entertainment Industry: Utilized in TV studios and theaters for mirrored stages or hidden camera setups, maintaining visual effects while enabling crew operations behind the scenes.

Faq

Q: Does Unidirectional Perspective Glass work in both day and night?

A: Its effectiveness depends on light balance. During the day, the brighter external side will appear reflective to those outside, while the interior can see out. At night, the effect reverses if the interior is brighter, so additional lighting control may be needed for 24/7 use.

Q: Can the glass be broken easily?

A: Standard variants have similar impact resistance to regular float glass. For security-critical applications, consider laminating or tempering the glass to enhance durability.

Q: How thick is the reflective coating?

A: Coatings are typically only a few nanometers thick, ensuring minimal impact on the glass’s structural integrity while achieving the optical effect.

Q: Can I install Unidirectional Perspective Glass myself?

A: Professional installation is recommended to ensure proper orientation (coated side facing the brighter environment) and sealing, especially for large panels or exterior applications.
