An effective observation room relies on a precise balance of optics, lighting, and material integrity. You cannot simply install an ordinary piece of glass and expect flawless results. When facility managers or security contractors get this wrong, compromised privacy, ruined focus groups, or invalid clinical observations are the immediate results. Subjects instantly realize they are being watched, which destroys the controlled environment completely.
This guide breaks down the structural requirements, material decisions, and critical lighting ratios necessary for success. We will compare the benefits of acrylic versus glass for different environments. You will learn how to evaluate transmission ratios and apply correct installation techniques. By following these principles, you can successfully specify and install a two-way mirror for professional security and observation environments.
Key Takeaways
A two-way mirror functions purely on light differential; a minimum 8:1 (subject-to-observer) lighting ratio is mandatory for the illusion to hold.
Material selection depends on the environment: glass provides superior acoustic isolation and scratch resistance, while acrylic offers impact resistance and cost-effective shipping.
Selecting the correct semi-transparent mirror coating dictates the exact transmission-to-reflectance ratio, which must align with your facility's specific lighting constraints.
Custom mirror solutions are often required for commercial builds to account for non-standard wall openings, soundproofing needs, and safety compliance.

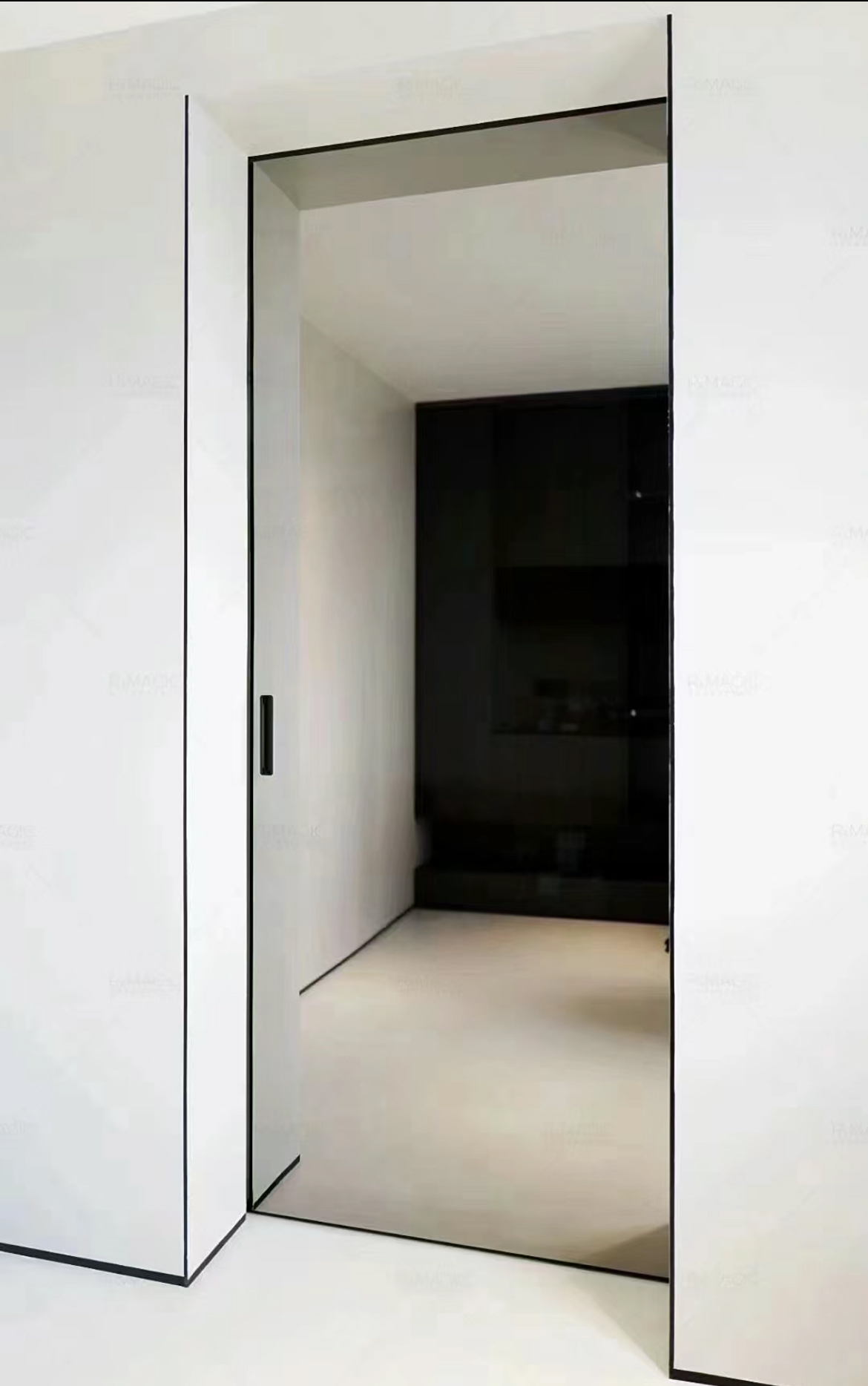

The Physics of Privacy: The "Lighting Ratio" Rule
There is no inherent magic baked into the glass itself. The one-way viewing effect relies entirely on manipulating light. When people look into the treated pane from a brightly lit room, their eyes adjust to the high volume of reflected light. They see their own reflection. Meanwhile, observers sitting in a dark room look through the same pane. Because their room lacks illumination, no light reflects back at them. They simply see through the microscopic gaps in the coating. The material behaves identically in both directions. Lighting dictates the outcome.
The subject’s room must be significantly brighter than the observation room. Industry standards dictate an 8:1 to 10:1 light intensity ratio. If the subject room produces 800 lumens, the observation room must not exceed 100 lumens. Achieving this specific ratio ensures the mirror illusion holds strong. When you drop below an 8:1 ratio, the glass starts looking translucent. Subjects might see vague shadows or outlines moving behind the wall.
Light leakage carries severe consequences. Imagine an observer opening a door to a brightly lit hallway. The sudden flood of light instantly breaks the mirror illusion. The subject will immediately see into the observation room. To mitigate this risk, you must employ light traps or double-door entry systems for the viewing area. Every time someone enters or exits, the internal lighting ratio must remain stable.
Observers must follow strict room best practices. Facility managers should mandate dark wall paint, preferably flat black or navy blue. You must remove bright furnishings. Glossy tables or white chairs reflect ambient light, which can bleed through the glass. Observers should use shielded task lighting if they need to take notes. Computer monitors must feature privacy screens and dim brightness settings. Any ambient light reflection threatens the privacy of the installation.
Evaluating Substrates: Acrylic vs. Security Observation Mirror Glass
Choosing the correct substrate is just as vital as achieving the right lighting ratio. You must evaluate the specific physical demands of your facility. Facility managers generally choose between acrylic polymers and security observation mirror glass.
When to Specify Glass
Glass is significantly denser than plastic. This high density makes it the default requirement for environments needing soundproofing. Interrogation rooms and psychiatric observation wards require absolute acoustic isolation. Sound waves struggle to penetrate thick glass panes. When observers need to converse without subjects hearing them, glass provides superior acoustic blocking.
Glass also offers excellent longevity and maintenance benefits. It is highly resistant to scratching during standard janitorial cleaning. Maintenance crews can clean it using standard commercial glass cleaners. It will not degrade, haze, or yellow over time. For permanent commercial installations, glass offers a reliable lifespan.
Safety compliance is another major factor. Installers can temper or laminate glass to meet strict commercial building codes. Laminated layers hold the pane together if shattered. This prevents dangerous glass shards from falling into the room. Always verify your local shatter resistance requirements before ordering.
When to Specify Acrylic
Acrylic serves best in high-impact environments. Behavioral facilities or high-traffic corridors often recognize blunt force impact as a primary risk. Acrylic absorbs physical shocks much better than standard glass. It flexes upon impact, reducing the chance of dangerous shattering.
Installers appreciate acrylic for its practical installation realities. Its lighter weight reduces the need for heavy-duty structural framing. You can maneuver large acrylic panels through stairwells easily. Handling oversized panels becomes simpler for large-scale installations. Shipping costs also decrease significantly due to the lighter freight weight.
However, acrylic involves several trade-offs. It is highly prone to bowing if improperly framed. When the material warps, it causes distorted, fun-house style reflections. Subjects might notice these unnatural visual distortions immediately. Additionally, acrylic requires specialized non-abrasive cleaning protocols. Standard paper towels or harsh ammonia cleaners will scratch the surface permanently.
Feature
Glass Substrate
Acrylic Substrate
Acoustic Isolation
Excellent (High density)
Poor to Moderate (Low density)
Scratch Resistance
High (Standard cleaning safe)
Low (Requires microfiber only)
Impact Resistance
Moderate (Unless laminated)
Very High (Flexes on impact)
Structural Rigidity
High (Will not bow)
Low (Prone to warping if large)
Weight
Heavy (Requires robust framing)
Light (Easier to transport)
Core Applications and Environment-Specific Requirements
Different industries utilize observation rooms for entirely different purposes. You must tailor the material specifications to the exact evaluation dimension of the environment. A setup designed for a police station will fail in a corporate testing lab.
Law Enforcement & Interrogation:
This environment prioritizes absolute acoustic isolation and high-security glazing. Investigators must discuss tactics in the observation room without tipping off the suspect. You often require laminated security glass to prevent breach. Suspects might become violent and throw chairs at the window. The glazing must withstand severe, sudden impacts while keeping observers completely silent and safe.
Market Research & Focus Groups:
Corporate researchers prioritize wide viewing angles and large continuous panes. They need to observe group dynamics, body language, and product interactions without visual distortion. In these rooms, acoustic isolation is less critical than visual clarity. The framing must support massive uninterrupted spans of material. You want the subjects to forget the glass exists entirely.
Clinical & Scientific Observation:
Medical professionals evaluate subtle physical changes. This application requires neutral color transmission. Observers or recording cameras must capture accurate skin tones and subtle physiological reactions. You cannot have a heavy color cast ruining the data. If the glass skews green or blue, a doctor might misdiagnose a patient's pallor. The coating must remain optically neutral.
Manufacturers achieve the one-way effect by applying a highly specialized chemical layer. Applying a semi-transparent mirror coating requires precision engineering. It dictates exactly how much light bounces back and how much passes through.
Reflectance vs. Transmission Percentage:
The standard metric balances these two forces. A typical panel offers 70% reflectance facing the subject and 11% to 20% visible light transmission (VLT) reaching the observer. Higher transmission allows easier viewing for observers. However, it demands an aggressively dark observation room to maintain the illusion. Lower transmission is much safer for preserving the illusion. Unfortunately, low VLT strains observer visibility, making note-taking difficult.
Decision Framework:
You must balance privacy against visibility. If you cannot strictly control the darkness of the observation room, choose a lower transmission percentage. If observers need to watch fine details and you have total control over ambient light, a higher transmission percentage works better.
Coating Placement (The "Fingernail Test"):
Installation orientation dictates success or failure. The coated side must always face the subject room. This maximizes the reflection for the subjects. It also protects the fragile coating from observer-side damage. Installers often use the fingernail test to identify the coated side. Place your fingernail against the surface. If there is a visible gap between your finger and the reflection, you are touching bare glass. If your finger touches the reflection directly, you found the coated side.
Implementation Risks and Custom Mirror Solutions
Executing a flawless observation room requires strict attention to installation details. Even premium materials fail if contractors install them poorly. You must anticipate structural limitations, acoustic leaks, and logistical hurdles long before the glass arrives on site.
The gap around the mirror frame serves as the most common point of acoustic failure. Contractors often focus on the glass density but ignore the edges. Sound waves travel easily through tiny framing gaps. You must implement robust structural soundproofing. Neoprene setting blocks and commercial-grade acoustic sealants are mandatory. Installers must caulk every edge thoroughly to isolate the viewing room completely.
Dimensional limitations also ruin project timelines. Planners often forget the realities of shipping and maneuvering oversized glass into finished commercial buildings. You cannot bend glass around tight corners. Elevator limitations frequently dictate the maximum panel size. Before finalizing a design, measure your freight elevators, stairwell landings, and hallway widths. If a panel cannot reach the room, you will waste thousands of dollars.
Off-the-shelf sizing rarely works for commercial retrofits. Standard sizes leave awkward gaps or force you to rebuild walls. Engaging specialized vendors for custom mirror solutions ensures exact-fit tolerances. Vendors will pre-drill hardware holes for communication systems. They also provide appropriate safety glazing certifications like ANSI Z97.1. Custom sizing eliminates last-minute onsite modifications, which often damage the specialized reflective coating.
Conclusion
Successfully implementing an observation room requires meticulous planning and precise execution. The illusion relies entirely on strict light management and strategic material choices. Facility managers must conduct thorough site audits before finalizing any purchase orders.
Audit the structural integrity of your wall to ensure it can hold dense, soundproof glass.
Measure the maximum achievable light differential between the two rooms to guarantee an 8:1 ratio.
Determine strict acoustic requirements based on the room's intended use.
Consult with an architectural glass specialist or specialized security vendor immediately.
Request physical samples of glass and acrylic substrates to test under your facility's actual lighting conditions.
FAQ
Q: Is it legal to install a two-way mirror in a commercial building?
A: Yes, in specific professional contexts like security, research, or clinical observation where subjects are aware or where there is no expectation of privacy. It is strictly illegal in areas with a reasonable expectation of privacy like restrooms, locker rooms, or dressing rooms. Compliance with local surveillance laws is mandatory.
Q: Can the subject tell it is a two-way mirror?
A: If the 8:1 lighting ratio is maintained and the observation room is completely dark, the subject will only see a standard mirror. However, if light breaches the observation side, the mirror becomes translucent, allowing subjects to see through.
Q: How do installers know which side faces the subject?
A: The manufacturer typically labels the coated or reflective side. Alternatively, touching a pen to the glass reveals the coating: if there is no gap between the pen and its reflection, that is the coated side, which must face the brightly lit subject room.
Q: Does a two-way mirror work at night?
A: Only if the internal lighting ratios are artificially maintained. If the subject room's lights are turned off and the observation room has any light on, the effect reverses completely. Observers become visible while subjects see a reflection.
